The STEPPER-BLOCKsilver is a compact stepper motor output stage
for 2-phase stepper motors with up to 70 V operating voltage and
up to 6 A phase current. It contains the complete power supply unit for the
direct connection to 230 VAC.

* Optocoupler inputs
* Extremely low noise and vibration* Current setting 1.5 A ... 6 A
* Microstepping 400 ... 51200 steps/revolution
* Automatic halving of the current at standstill
* Pulse frequency up to 250 kHz
* Overvoltage, undervoltage and short-circuit protection
* Alarm output

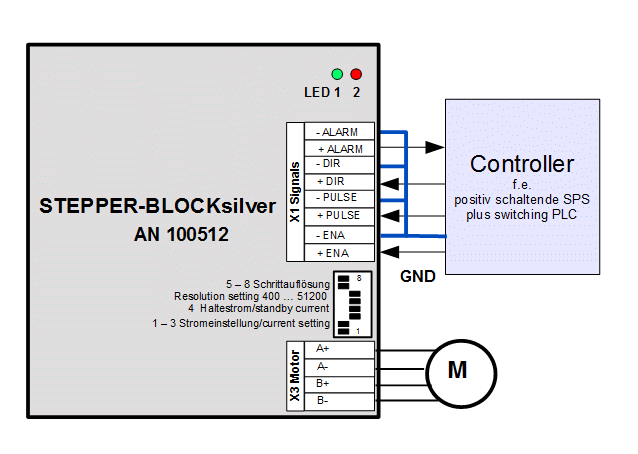

wiring diagram

Technical Data:

Housing (W x H x D):
Base plate: H x W = 156 x 115 [mm]

Feed in:
230VAC/50Hz

Output signal:
fault

engine
Operating voltage:
Typical 65 VDC at rated mains voltage
I max 6 A
f max 50 kHz

Entrances:
Galvanically isolated via optocoupler
- High = 12 - 26 V
- I min = 5 mA

Step pulse:
> 10 μs Duration
Direction of rotation:
Toggle > 10 μs before step pulse

Fuses:
3 A slow blow

The fuse is located below the mains plug. It can
can be released with half a turn.

Further fuses are located on the output stage itself, with
that's fused to the electronics. (See
Operation)

Temperature:
0 – 50 °C

Ventilation:
Through natural convection.

Weight
3,4 kg
