The speed controller DS 4-10 is a 4-quadrant power amplifier for DC motors. The compact power stage is characterized by a low power dissipation and precise regulation of the parameters.
compact power
This new amplifier offers high-tech in a small space. New MOSFET technology, only very little loss of power is converted into heat. With 20-48 V DC operating voltage and 10 A peak current is a power of 480W. And in a DIN rail 33 mm width.
Intelligent control
The integrated, powerful processor ensures accurate control of various adjustable parameters (I, x R, ramps).
Display and operation

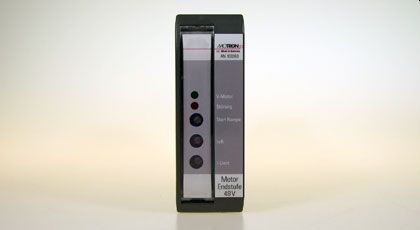

Two LED indicators inform the user about the status of the amplifier. A green LED indicates the correctly applied circuit voltage and a red fault indicator shows the response of the protective device (alarm output). The current limit potentiometer, ramp and IxR are readable from the front and adjustable. A transparent cover protects against inadvertent adjustment.
Security
The fault output is a potential free contact, which responds to current and over temperature. In the off state, and in case he is open, closed during normal operation.

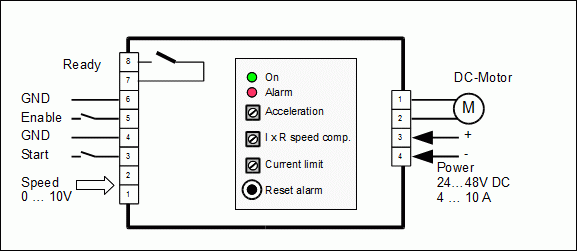

For safety reasons are required for the motor to two input signals. The “Enable” input acts as a security clearance. With the “Start” input is the motor is started from one controller.
Technical Data:
Power supply:
48VDC / 100mA (without engine power)
Power Amplifier:
4-quadrant power stage with PWM control
Current:
to 10A
Peak Power:
up to 30A. 2.5s long
then turn off the unit and report overcurrent
Target:
Start on input 0 – 10V corresponding to 0 – 100% speed
Minimum setpoint:
0 … 50% adjustable by potentiometer
Start input:
On optocoupler, typically 24 V /> 12 mA,
Low = <1V, High => 8 V
Alarm output:
Contact open = alarm, closed = ok
Is activated after about 2.5s > set maximum power or 2.5 > overheating and remains pending until receipt
When switched off = open
Alarm contacts:
Potential free NO contact, 0.5A at 125VAC, 1A at 24VDC
Switch receipt:
Clearing the alarm output
Display:
Green LED = Power
LED red = alarm
Operating:
0 .. 55 ° C
Storage temperature
-10 .. + 80°C
Ventilation:
By natural convection
Housing (HxWxD):
100 × 35 × 120mm, DIN rail
Weight:
220g
Backup:
no
