STEPPER-BLOCK 3-ph

STEPPER-BLOCKgold 3P Kompakte Schrittmotorendstufe

Article Number:

100036

Compact Driver for 2-, 3- and 5-phase Stepping Motors

Compact Construction
The STEPPERBLOCKplus is a ready-to-use compact driver. It possesses power supply and amplifier for 2-phase, 3-phase or 5-phase stepping motors from to 80V/4A with up to 120 V/12 A

The user has an alternative to the conventional setup of single sub racks in 19” cases.  With the STEPPER–BLOCKplus  the user possesses a compact appliance  with a minimum wiring expenditure, therefore with a minimum source of errors. The connections are carried via userfriendly plug-in-terminals.

Robust + Reliable
In the design we set great store on  stabile construction and reliable electronic. The  STEPPER–BLOCKplus has a minimum source of errors, is solid, robust, with high reliability. The drivers are short circuit prtected and protected against over and under voltage as well as against excess temperature.

Easy Starting
The STEPPER–BLOCKplus  is installed on the mounting plate. Connect power supply, motor, pulse and direction signal – that’s all.

Equipment
For an easy start the Stepper-Tester,  a hand-held small box, is available which allows to drive the motor and to test out the signals.

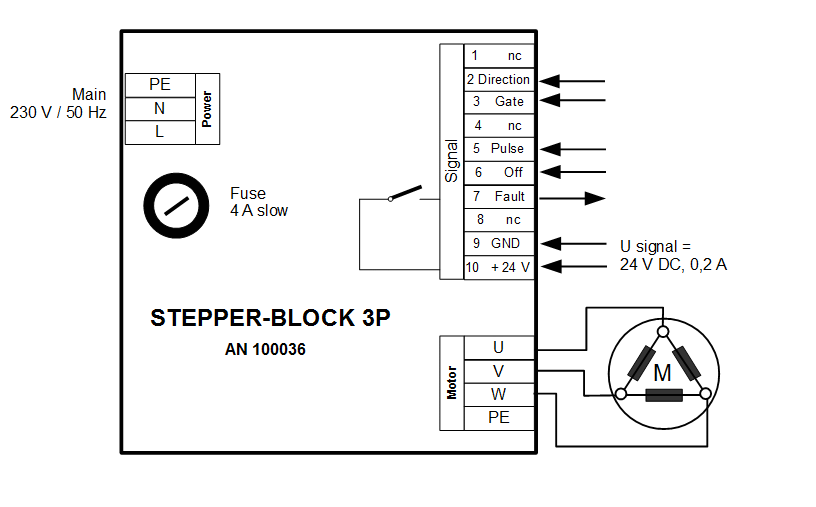

Connection diagrqamm STEPPERBLOCK 3P

Technical Data:

Technische Daten

Typ








STEPPER
BLOCKplus 2P
STEPPER-
BLOCKplus 3P
STEPPER-
BLOCKplus 5P
Stepping motor
2-phase
3-phase
5-phase

Power Supply
+ at  230 V/50 Hz,
±15 %
+ ati 230V/50 Hz,
±15 %
+ at 230 V/50 Hz,
±15 %

Motor power
70 V
80 V
70 V

Phase current adjustabler
6 A
5,4 A
2,8 A

Connections
opto-isolated
opto-isolated
opto-isolated

Step resolution
200/400
200/400/500/1000
500/1000

Step timpulse
> 5 µs
> 5 µs
> 5 µs


Torque direction
+
+
+

Current = 0
+


Boost and Reset
+


Resistance to jamming
Over voltage
Overs current
Over temperature
Short circuit
Over voltage
Overs current
Over temperature
Short circuit
 Over voltage
Overs current
Over temperature
Short circuit

Interference output
Opto-coupler
Relay
Relay

Temperature
0 – 50°C
0 – 50°C
0 – 50°C

Dimensions
132 × 168 x 180 mm
132 × 168 x 180 mm
132 × 168 x 180 mm

Weight
5,8 kg
5,7 kg
5,7 kg
