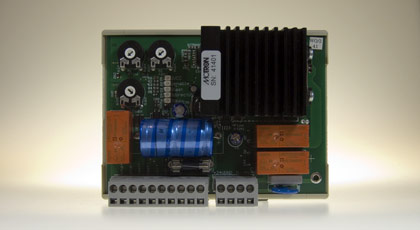

The motor amplifier 1Q-DC is a power amplifier for DC motors in DIN rail housing, which is characterized by its robust construction. Thanks to its Power MOS Fet output stage, it can typically drive motors up to 24V/4A, and up to 40V/5A.
In order to be able to use the 1Q-DC amplifier universally, control is deliberately kept simple.

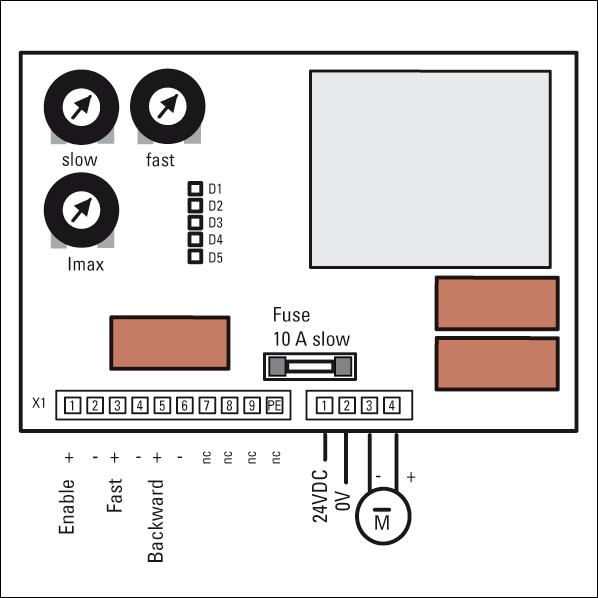

All control signals are galvanically isolated from the external control. - Forward/Reverse - Slow/Fast - Hold/Enable
The 1Q-DC can be adapted to its task via 3 potentiometers: - Slow speed ("creep speed") - Fast speed ("rapid speed") - Current limit ("motor protection")
Technical Data:
Power supply:
Ue 24VDC (20 – 40V) at least 5A
Inputs: – Enable (optocoupler)
low> 3V, 10V high, about 10mA
Low = off, high = motor is released and runs
- Fast (relay)
Low> 10V, 18V high,
low = slow speed, high rapid traverse =
- Reverse (relay)
low = forward run, high = reverse
Points:
no
Temperature range:
to 50°C ambient temperature
Housing (WxHxD):
130 × 96 × 69mm for DIN-rail mounting
