PFT3 14V

PFT3 14 Volt

Article Number:

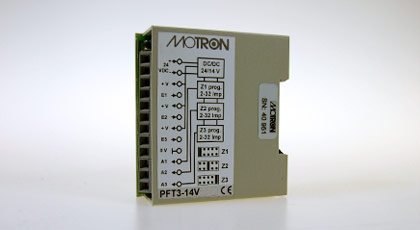

The programmable frequency divider has three independent counters.

The internal operating voltage (14 V) is generated by a pulsed power supply and is short circuit proof. The external clock can be supplied with this 14-V voltage.

The divider ratios of the counter (Z1, Z2 and Z3) are determined by inserting a jumper per each count. From left to right, doubles the divider ratio (2, 4, 8, 16, 32).

Anschlussbild PFT3 14 V

Technical Data:

Power supply:
Ue 24VDC (20 – 30V) ca. 50mA

low <= 1 V, high >= 10V, Re ca. 30kOhm

low <= 2V, high >= 17V, max. 10mA for 24VDC power supply

Housing (WxHxD):
22,5 × 75,5 × 69mm for DIN-rail mounting
