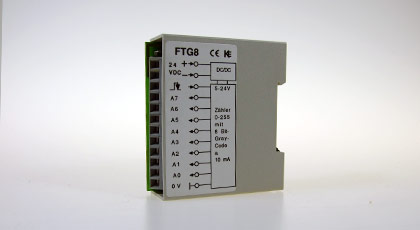

FTG 8

FTG8

Article Number:

100266

The device has an input and 8 outputs (0 – 255), encoded in Gray code. The internal operating voltage (about 5V) is stabilized with a zener diode and is short circuit proof.

The input accepts a positive signal to max. 2 kHz. The counter on the falling edge. The voltage at the input can be up to the max. Operating voltage to rise. The outputs (A0 – A7) have a resistance in series.

The FTG 8 is contactless and therefore maintenance free. He should be protected from moisture and heavy dirt. The mounting position is arbitrary.

Anschlussbild FTG8

Technical Data:

Power supply:
Ue 24VDC (20 – 30V) ca. 12-80mA

Input:
low ≤ 1,9V, high ≥ 3,3V, Re ca. 4kΩ

Output:
low ≤ 0,9V, high ≥ 17V, max. 10mA
for 24VDC power supply

Housing (WxHxD):
22,5 × 75,5 × 69mm for DIN-rail mounting
